3.2m Toy Hauler Tipper Trailer

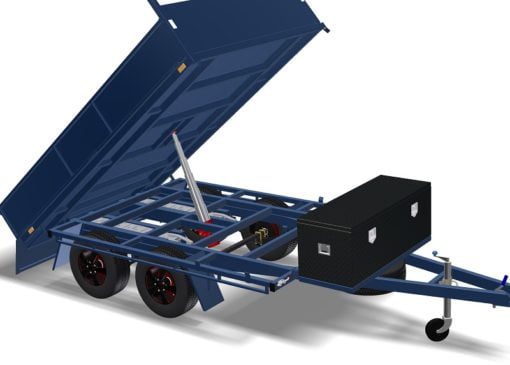

Our Toy Hauler Tipper Trailer was designed for a couple of mates that needed a trailer to load a quad and two motorbikes for weekend getaways. However, they also wanted a workhorse they could use during the week to cart stuff around. The Toy Hauler features a compact load area of 3200x2000mm (10.5×6.5ft), removable sides panels to enable loading from the back or sides, ramp storage underneath the deck, 1640 track width, toolbox storage upfront, tie down rails and more. When converted to a tipper, the sides allow 2.5 cubic metres of load volume and the hydraulic system enables 45 degree tipping angle.

The plans conform to the Australian National Code of Practice – Building Small Trailers (VSB1). Trailers built to comply with this code of practice can be registered for on-road use in Australia.
All our trailer plans are compliant with relevant ADRs, applicable in all states and territories for new trailer builds under RVS Regulation.
The plan includes a Certificate of Compliance (CoC) for ADR 62 – Drawbar.

DIGITAL DOWNLOAD – Plans are delivered digitally immediately after payment to get your trailer build project going without delay.

$69.00



  • Load Area:     3200x2000mm (10.5×6.5ft)
  • Overall:      5113x2000mm (16.7×6.5ft)
  • Max. ATM:      2500kg
  • TARE:      ±1000kg (incl hyd. tipping gear)
  • Load Capacity:     up to 1500kg
  • Chassis & Frame Construction:      Channel, RHS & SHS (various sections)
  • Suspension:     Tandem Axle & Leaf Springs
  • Features:     Under body ramp storage, Tie-down rails, hydraulic tipping, under body spare wheel…
  • Contents:     Detailed part & assembly drawings, assembly guide, parts & cutting lists, pictures and a number of optional drawing files (DXF & EXCEL files are also provided)
  • File Size:     13.5MB (PDF)



TRAILER BUILDS

Jay’s 2500kg Flatbed Trailer Build

Jay used the 2500kg Flatbed plan to build his trailer. Great job with the build [...]

Jeremy’s 4.5T Tri-Axle Flat Top Trailer build

Jeremy built this brilliant trailer using the 4.5T Tri-Axle Flat Top trailer plan. He modified [...]

Mick’s 6m Flat Top Trailer Build

Mick from New South Wales sent in these pictures of his 6m Flat Top Trailer [...]

Adam’s 6m Flat Top Trailer Build

Adam sent these pictures of a 6m Flat Top trailer he built using our plans [...]

Tim’s 6m Flat Top Trailer Build

We received some pictures from Tim who built this awesome 6m flat top trailer from [...]

Robyn’s 4.8m Flat Top Trailer Build

Having an engineers design certainly makes the build easy. No problems to nut out, just [...]

Braden’s 4.8m Flat Top Trailer Build

A good example of how a stock plan (no pun intended) can be used as [...]

Brooklyn’s 3.2m Toy Hauler Tipper Trailer Build

We received these images from Brooklyn, who built the trailer as a school project, using [...]

Jeremy’s Flatbed TILT Trailer Build

Using our Flatbed TILT Trailer Plans, Jeremy built this unique trailer by making a few [...]

TRAILER BUILD – 6m FLAT TOP Trailer

TRAILER BUILD – 6m FLAT TOP Trailer An enthusiast trailer builder put this magnificent flat [...]

Mark’s 4.8m Flat Top Trailer Build

Mark’s 4.8m Flat Top Trailer Build Mark’s trailer built using the 4.8m Flat Top Trailer [...]

Rob’s 2200kg Single Axle Flatbed Trailer Build

Rob’s 2200kg Single Axle Flatbed Trailer Build RACE CAR HAULER We received these pictures from [...]

Cory’s Tri-Axle Flat Top Trailer Build

Cory’s Tri-Axle Flat Top Trailer Build SHEEP STATION TRI-AXLE   Cory and some of the [...]

Mathew’s Magnificent Tri-Axle Trailer Build

Mathew’s Magnificent Tri-Axle Trailer Build Over the years we have seen many great trailer builds [...]

Ben’s Flat Top Wide Bed Trailer

Ben’s Flat Top Wide Bed Trailer Facebook follower Ben built this really cool wide bed [...]

More Info

  • Load area of 3200x2000mm (10.5×6.5ft), volume with sides 2.5 cubic meters

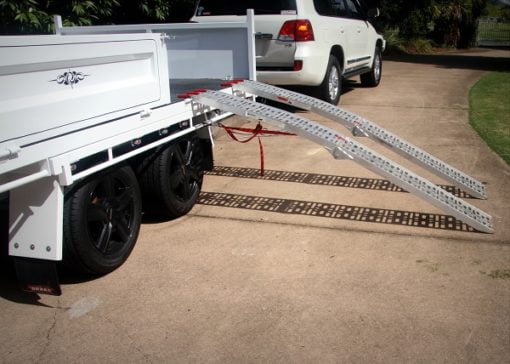

  • Ramp storage under deck
  • 12V 6-stage hydraulic lift kit

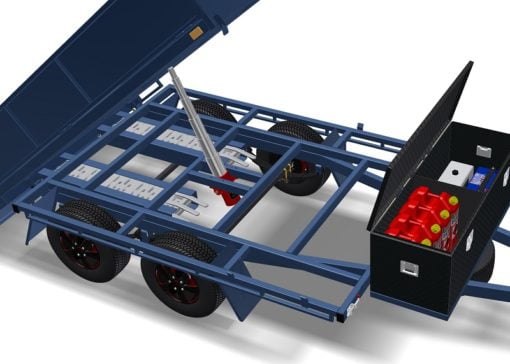

  • Under-body spare wheel storage
